螺紋式插裝溢流閥-引導、透氣型
詳情介紹
特性/Characteristic:
●溢流閥的設定壓必須高于引導閥。
●快速反應,響應時間10ms。
●在主階和引導部分之間的3號口用于遙控和卸載。
●The relief valve setting must always be set higher than the pilot valve
●Fast acting10ms response time
●Third port between main stage and pilot element used for remote control or unloading
注:閥孔型號:Valve Cavity:T02
成型刀具 Cavity Tools:CT02-D.CT02-R
請參閱 Reference P102
●快速反應,響應時間10ms。
●在主階和引導部分之間的3號口用于遙控和卸載。
●The relief valve setting must always be set higher than the pilot valve
●Fast acting10ms response time
●Third port between main stage and pilot element used for remote control or unloading
注:閥孔型號:Valve Cavity:T02
成型刀具 Cavity Tools:CT02-D.CT02-R
請參閱 Reference P102
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CRV-T02 | 透氣型 Vented type 引導型 Pilot operated |
100ℓ/min | 315bar | K:0.29Kg L:0.25Kg |
選購指南/How to order:
| CRV | T02 | L | 10 | N |
| 系列編號： 溢流閥- 透氣型 Series No. Relief Valves- Vented |
閥孔型號 Cavity Size |
調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj. |
壓力調整范圍 Adjustment Ranges. 10-5 to 100 bar. 20-7 to 210 bar. 30-10 to 315 bar. 1S-3.5 to 100 bar.(option) 2S-5 to 210 bar.(option) |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

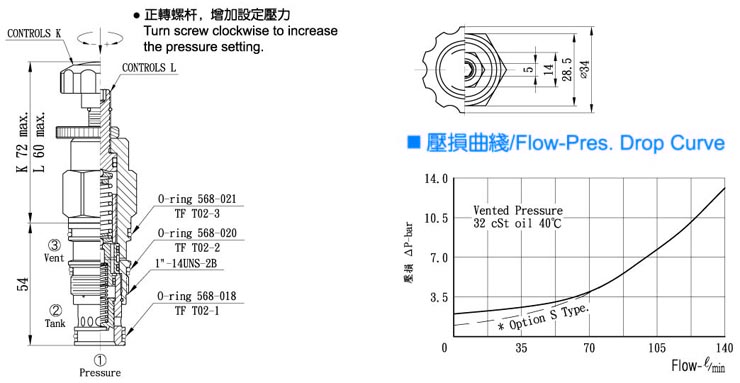

尺寸圖/Dimensions(mm)
