螺紋式插裝溢流閥-引導、快速反應
詳情介紹
特性/Characteristic:
●快速反應,響應時間2ms，低泄漏量（小于5滴/分鐘）。
●壓力調整不穩定且不是設計為連續負荷使用。
●Fast acting 2ms response time Low leakage(less than 5 drops/min)at reseat
●These cartridges exhibit very rapid response,but pressure regulation can be unstable and the valves are not designed for continuous duty applications
注:閥孔型號:Valve Cavity:C062
成型刀具 Cavity Tools:CTS6-D.CTS6-R
請參閱 Reference P97
●壓力調整不穩定且不是設計為連續負荷使用。
●Fast acting 2ms response time Low leakage(less than 5 drops/min)at reseat
●These cartridges exhibit very rapid response,but pressure regulation can be unstable and the valves are not designed for continuous duty applications
注:閥孔型號:Valve Cavity:C062
成型刀具 Cavity Tools:CTS6-D.CTS6-R
請參閱 Reference P97
性能表 /Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CMQ-062 | 引導式 Pilot operated 快速反應 Rapid response |
60ℓ/min | 315bar | K:0.16Kg L:0.13Kg |
選購指南/How to order:
| CRQ | 062 | L | 10 | N |
| 系列編號： 溢流閥- 快速反應型- Series No. Relief Valves- Rapid Response. |
閥孔型號 Cavity Size |
調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj. |
壓力調整范圍 Adjustment Ranges. 10-5 to 100 bar. 20-7 to 210 bar. 30-10 to 315 bar. |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

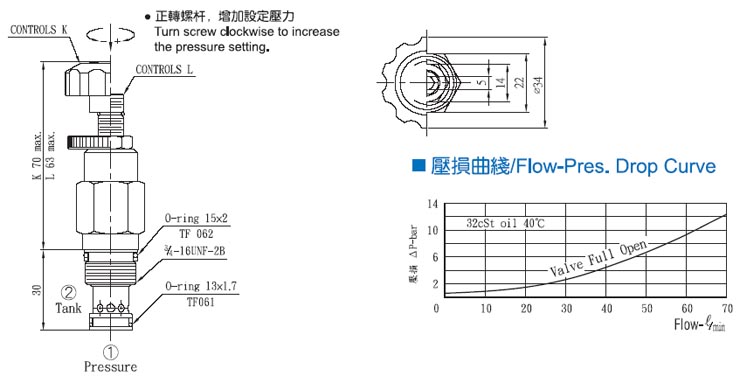

尺寸圖/Dimensions(mm)
產品型號
